Parallel K-Means Data Clustering

This software package parallel-kmeans.tar.gz (4.6 MB) of parallel K-means data clustering contains the followings:

A parallel implementation using OpenMP and C
A parallel implementation using MPI and C
A sequential version in C

For large data support (more than 2 billion number of data points), see this page for an MPI implementation that uses 8-byte integers.

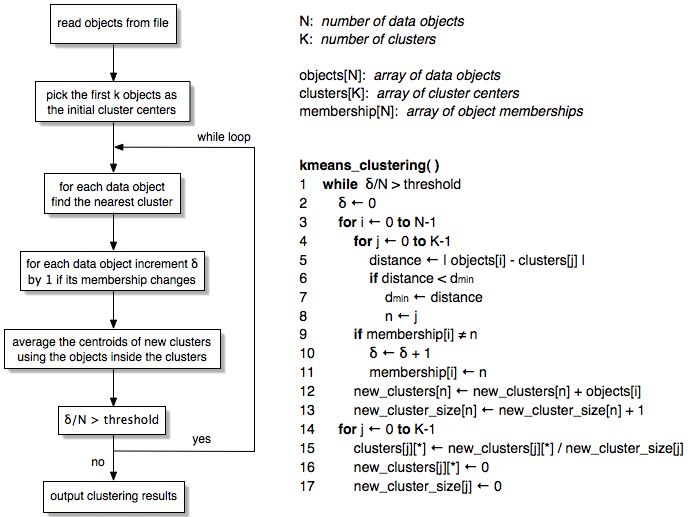

Algorithm:

The above sequential algorithm is based on the paper by MacQueen, J. "Some Methods for Classification and Analysis of Multivariate Observations." In the 5th Berkeley Symposium on Mathematical Statistics and Probability, 1967.
The parallel implementation uses data parallelism. Data objects to be clustered are evenly partitioned among all processes while the cluster centers are replicated. Global-sum reduction for all cluster centers is performed at the end of each iteration in order to generate the new cluster centers.

To compile:

Although I used Intel C compiler, icc, version 7.1 during the code development, there is no particular features required except for OpenMP. Thus, the implementation should be fairly portable. Please modify Makefile to change the compiler if needed.

Make command for the sequential version: make seq_main
Make command for the MPI version: make mpi_main
Make command for the OpenMP version: make omp_main
To enable the feature of using parallel netCDF to performance I/O, edit Makefile to change variable ENABLE_PNETCDF to yes/no and set the variable PNETCDF_DIR to the place where parallel netCDF is installed.

To run:

The Makefile will produce executables

"omp_main" for OpenMP version
"mpi_main" for MPI version
"seq_main" for sequential version

The list of available command-line arguments can be obtained by running -h option

For example, running command "omp_main -h" will produce:

Usage: main [switches] -i filename -n num_clusters
       -i filename    : file containing data to be clustered
       -c centers     : file containing initial centers. default: filename
       -b             : input file is in binary format (default no)
       -r             : output file in binary format (default no)
       -n num_clusters: number of clusters (K must > 1)
       -t threshold   : threshold value (default 0.0010)
       -p nproc       : number of threads (default system allocated)
       -a             : perform atomic OpenMP pragma (default no)
       -o             : output timing results (default no)
       -v var_name    : using PnetCDF for file input and output and var_name
                        is variable name in the netCDF file to be clustered
       -k var_name    : name of variable in the netCDF to be used as the
                        initial cluster centers. If skipped, the variable
                        name from the option "-v" is used
       -d             : enable debug mode
       -h             : print this help information

Input file format:

The executables read an input file that stores the data points to be clustered. A few example files are provided in the sub-directory ./Image_data. The input files can be in two formats: ASCII text and raw binary.

ASCII text format:

Each line contains the ID and coordinates of a single data point
The number of coordinates must be equal for all data points
Example files: color100.txt, texture100.txt, and edge100.txt

Raw binary format:

File header contains two 4-byte integers.
- The first 4-byte integer is the number of data points.
- The second integer is the number of coordinates for each data point.
The rest of the file (file body) contains the coordinates of all data points and each coordinate is a 4-byte floating point of type float.
There are three example files (in little Endian format) provided: color17695.bin, edge17695.bin, and texture17695.bin. They each contains 17695 data points.

NetCDF file format:

netCDF is a portable and self-describing file format. http://www.unidata.ucar.edu/software/netcdf
Parallel netCDF (PnetCDF) is used to carry out parallel I/O, please check the link below for further information about PnetCDF. http://cucis.ece.northwestern.edu/projects/PnetCDF

Note: The first K elements of the input data are picked as the initial K cluster center coordinates.

Output files:

There are two output files:

Coordinates of cluster centers

The file name is the input file name appended with ".cluster_centres".
The default is in ASCII text format.

Each line contains an integer indicating the cluster id and the coordinates of the cluster center.

Binary format can be enabled by using -r option.

Header: the first 4-byte integer is the number of clusters and the second 4-byte integer is the number of coordinates of the cluster center.
Body: the coordinates of all cluster centers.

Membership of all data points to the clusters

The file name is the input file name appended with ".membership".
The default is in ASCII text format.

Each line contains two integers: data point index (from 0 to the number of points) and the cluster id indicating the membership of the point.

Binary format can be enabled by using -r option.

Header: a 4-byte integer for the number of data points.
Body: the list of cluster IDs (4-byte integers), corresponding to each data point.

Performance results:

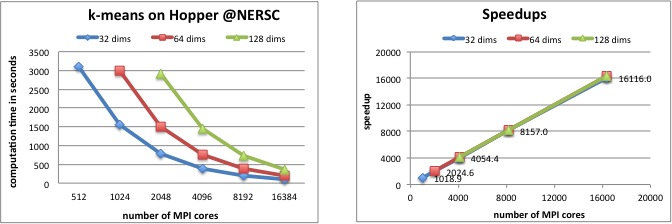

Performance results on Hopper, the Cray XE6 at NERSC, 2011. Hopper has 153,216 processors cores (6,384 compute nodes made up of 2 twelve-core AMD MagnyCours 2.1 GHz processors). The input data contains 1 billion data points and each data point is a vector of 128 dimensions.

Limitations:

Data type -- This implementation uses C float data type for all coordinates and other real numbers.
Large number of data points -- The number of data points cannot exceed 2G due to the 4-byte integers used in the programs.
For using a different data type and large data support, please see this page

Derived Work:

Parallel Clustering Algorithms with Application to Climatology -- Master thesis of Halil Bisgin, Informatics Institute, Istanbul Technical University, Turkey. (Halil Bisain is now a doctoral student at University of Arkansas.)
